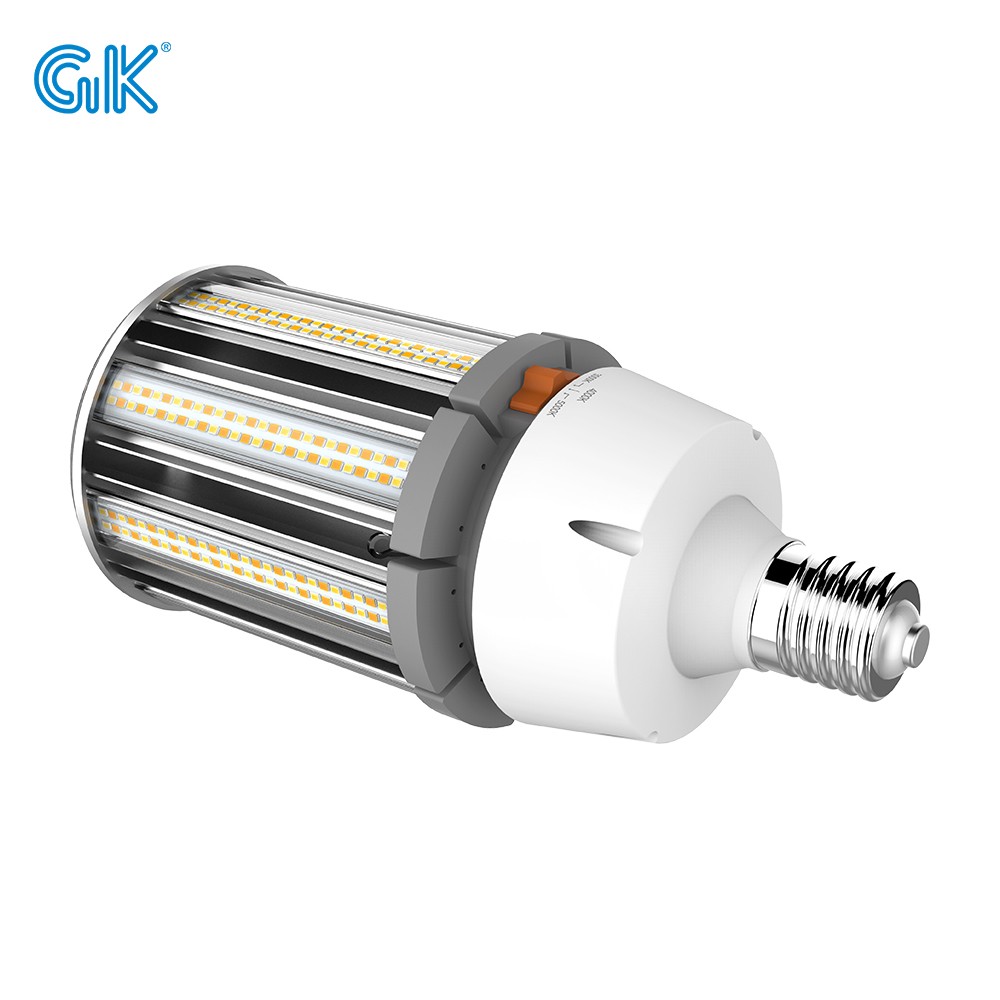

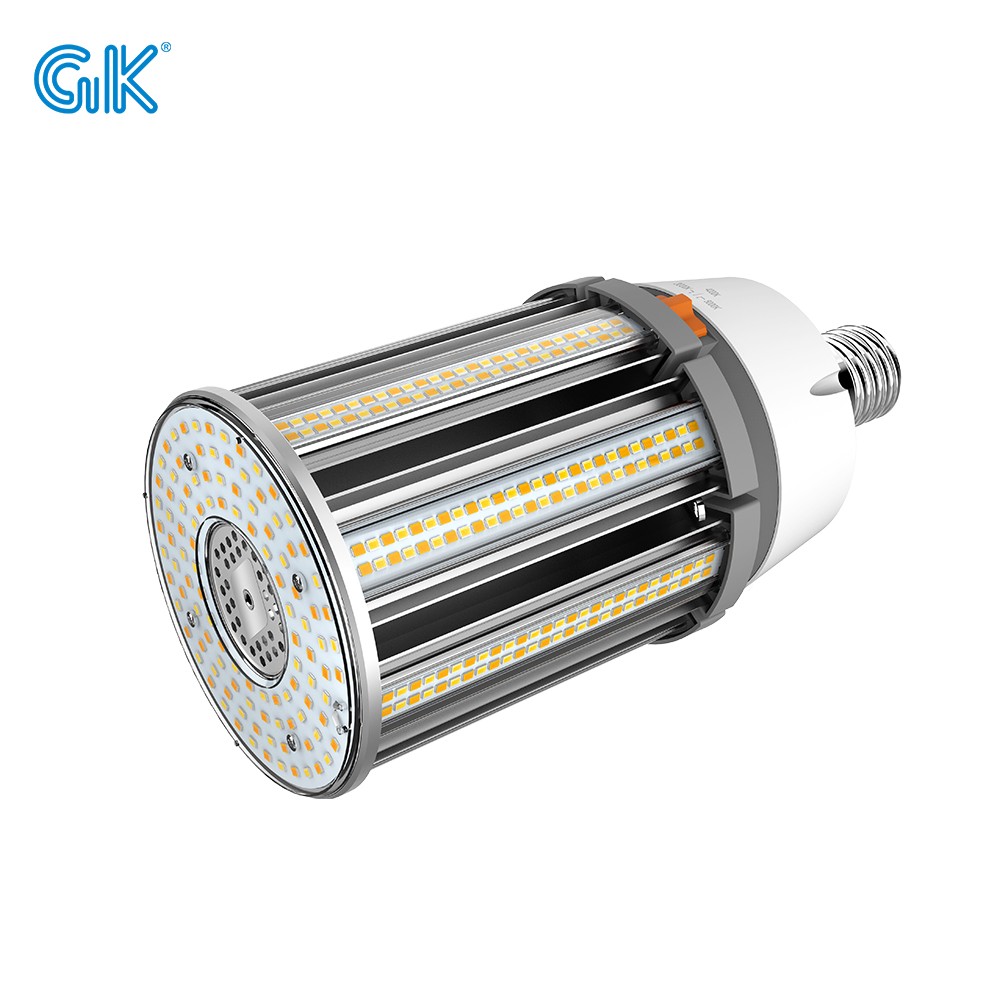

High Power Microwave Dimmer Sensor LED Corn Lamp
Advantage:
China&US patent
high light efficacy, 150lm/w
most compact size for total enclosed fixture
higher quality guarantee,defect rate<0.5%

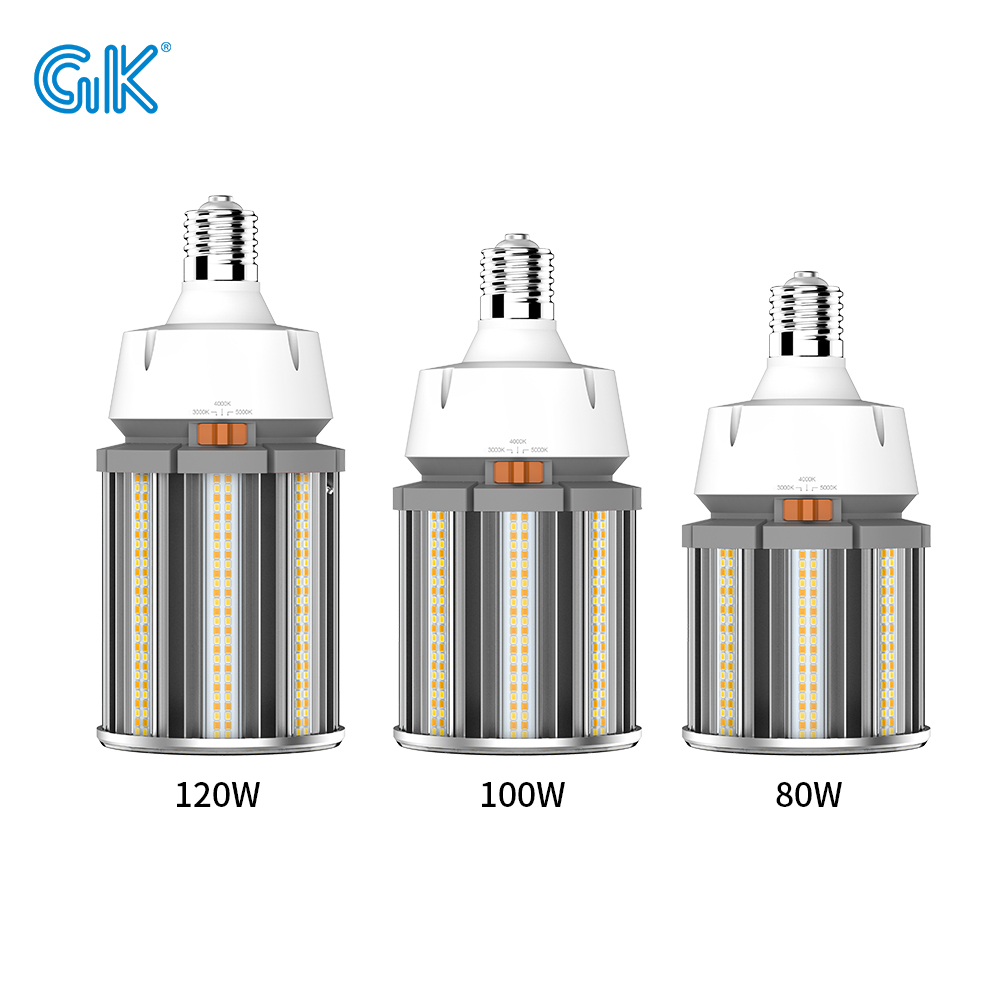

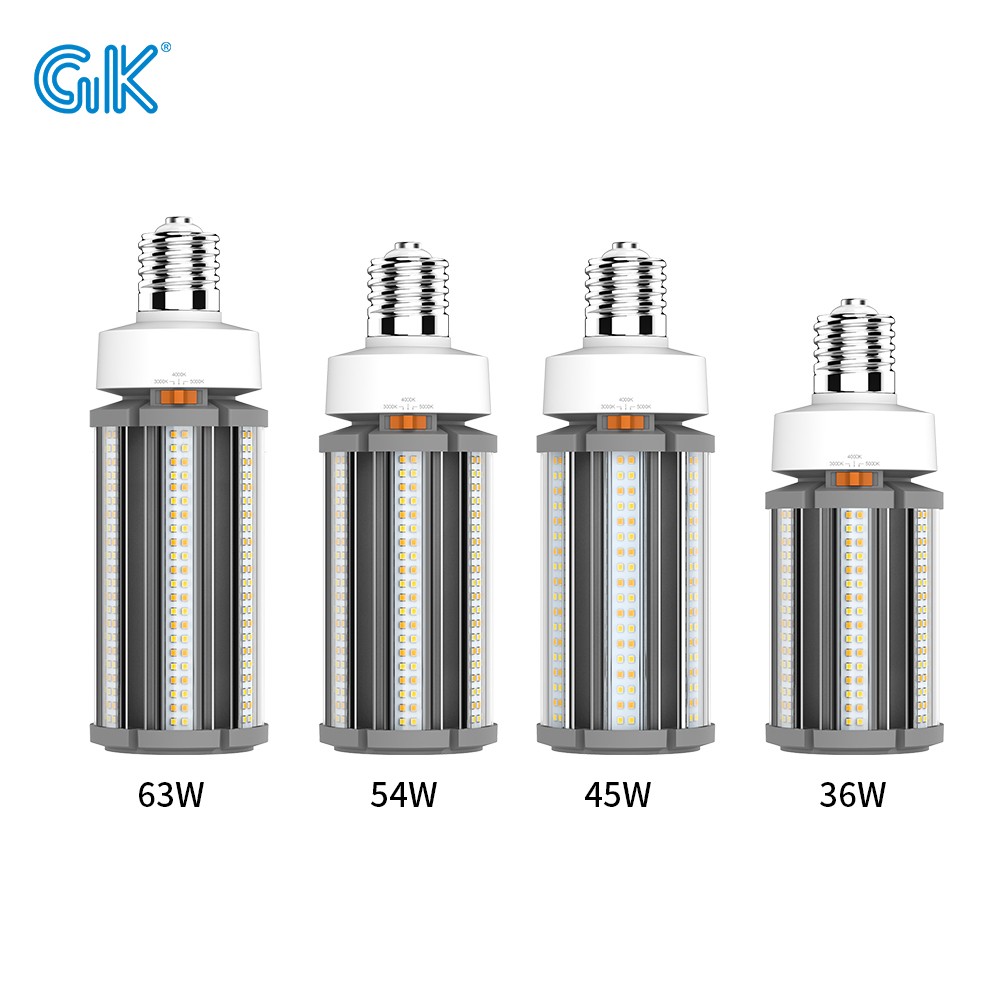

More watt option 36-120w 150lm/w and CCT selectable
DLC 5.1/UL/Erp/CE approval
360D design for most fixtures
Intelligent interface for plug and play sensors like MW sensor, PIR sensor, WIFI sensor etc
4 protections for led driver solution(Varistor/ lamp body/Power supply overheating, over-voltage protection)
CCT selectable: 3000K/4000K/5000K
3 in 1 dimming LED lamp (0-10V dimming, PWM Dimming, Resistance dimming)
GK LED Corn Light Series lamps to use Rubycon driver,
Samsung chips,
IP64 damp location-rated design, waterproof, dust-proof, mosquito proof,
The multifunctional interface driver is sealed with thermal paste,
active heat dissipation with aircraft-grade aluminum,
360-degree beam angle, flame retardant materials,
suitable for use in totally enclosed fixtures.
Direct wire lamps, must bypass the ballast.
| MODEL NUMBER | VOLTAGE | LUMEN | WEIGHT (N.W./PC) | EQUAL TO |
| GKS39-36W-09 | 100-277V | 5400+10% | 0.64kg | 175W HPS/MHL |
| GKS39-45W-09 | 100-277V | 6700+10% | 0.73kg | 200W HPS/MHL |
| GKS39-54W-09 | 100-277V | 8100+10% | 0.75kg | 250W HPS/MHL |
| GKS39-63W-09 | 100-277V | 9400+10% | 0.82kg | 280W HPS/MHL |
| GKS39-80W-09 | 100-277V | 12000+10% | 1.33kg | 320W HPS/MHL |
| GKS39-100W-09 | 100-277V | 15000+10% | 1.45kg | 400W HPS/MHL |
| GKS39-120W-09 | 100-277V | 18000+10% | 1.58kg | 500W HPS/MHL |
High Power Microwave Dimmer Sensor LED Corn Lamp
| WATTBASE | E26(Size mm(X0.0393=inch) | E27 | EX39 | E39 | E40 |
| GKS39-36W-09 | ∅85*202 | ∅85*205 | ∅85*202 | ∅85*219 | ∅85*223 |
| GKS39-45W-09 | ∅85*232 | ∅85*235 | ∅85*249 | ∅85*249 | ∅85*253 |
| GKS39-54W-09 | ∅85*232 | ∅85*235 | ∅85*249 | ∅85*249 | ∅85*253 |
| GKS39-63W-09 | ∅85*247 | ∅85*250 | ∅85*264 | ∅85*264 | ∅85*268 |
| GKS39-80W-09 | | | ∅130*247 | ∅130*247 | ∅130*250 |
| GKS39-100W-09 | | | ∅130*262 | ∅130*262 | ∅130*265 |
| GKS39-120W-09 | | | ∅130*283 | ∅130*283 | ∅130*285 |
High Power Microwave Dimmer Sensor LED Corn Lamp
1. 3 in 1 dimming LED lamp
(0-10V dimming, PWM Dimming, Resistance dimming)
2. WiFi control LED lamp
App-Dimming & time control. Support group or single operation
3. Sensor LED lamp
Microwave sensor, PIR sensor, WiFi sensor, Photocell sensor
Sensor instruction:
Stand-by dim level 0-20%-40%-60%
Hold time: 30s-90s-5m-10m
Wall pack, Acorn, Canopy, Garage light, Post top, Shoe box, Cobra Head, Flood light
Multifunctional interface IP64 damp location-rated design, waterproof,dust-proof, mosquito proof. and have a 360 degree beam angle which for lights commercial and industrial spaces such as factories,supermarkets and shopping malls.
